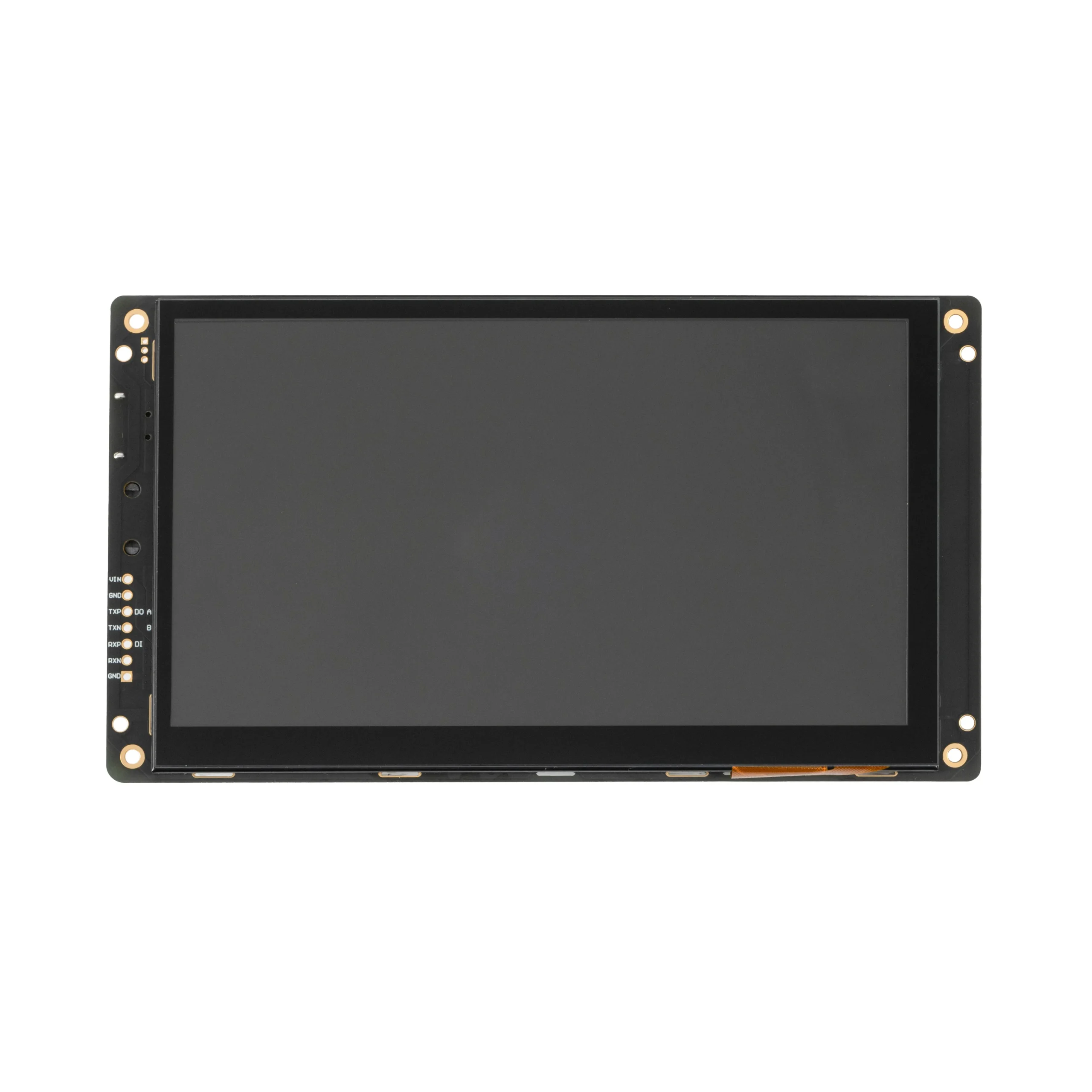

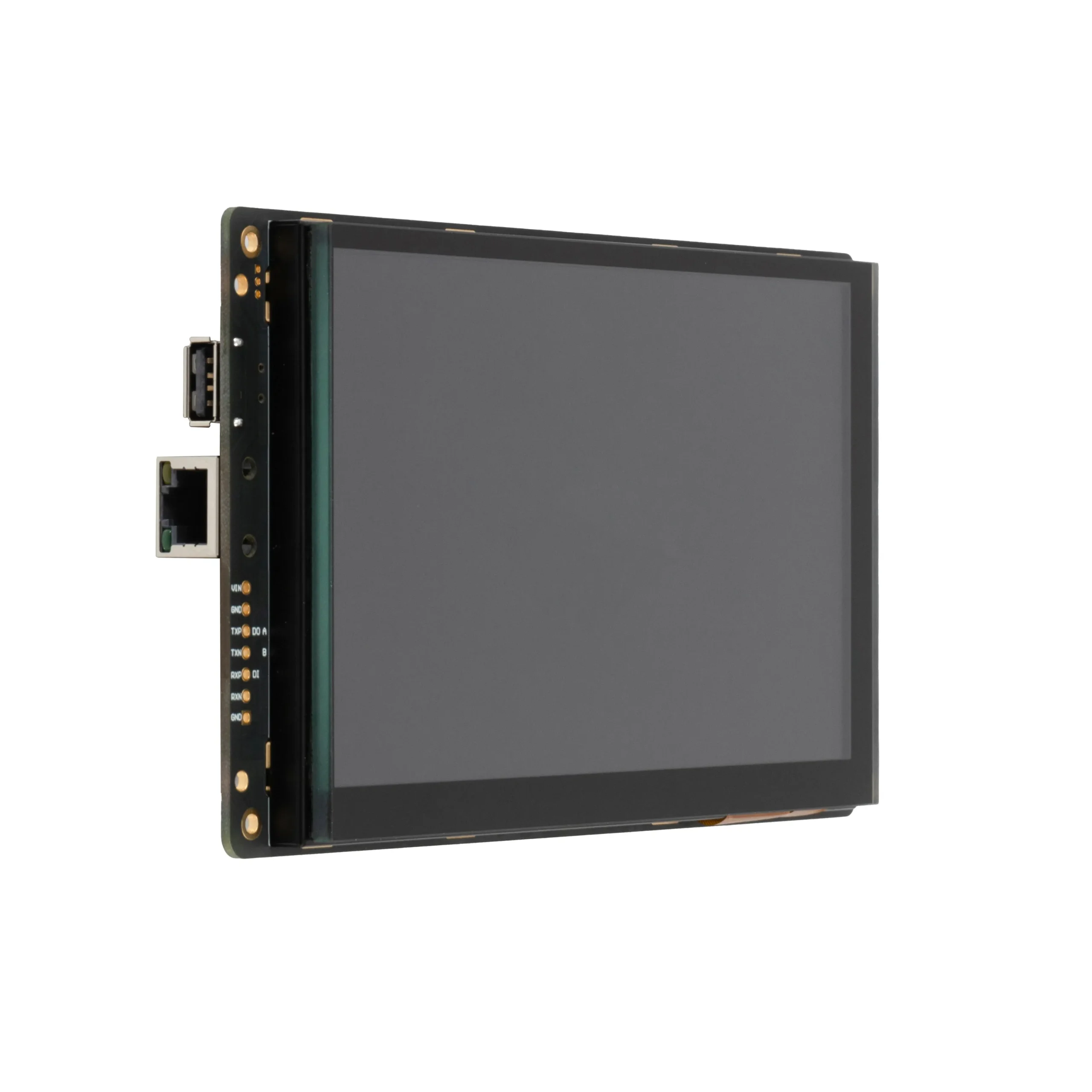

7.0英寸; 800×480分辨率; 工业级 TFT-LCD模块显示屏技术参数
| Model | STWI070WT-01 |
|---|---|
| Size | 7.0 inch |
| Resolution | 800×480 |
| Pixel Spacing | 0.0642(W) × 0.1790(H) mm |
| Color | 262,144 colors (18 bit) |
| Viewing Area | 154.08(W) × 85.92(H) mm |
| Display Dimension | 186.4mmx105.5mm |
| Overall Dimension | 186.4mmx105.5mmx17.4mm (Standard type) 186.4mmx105.5mmx23.8mm (with Ethernet port) |
| Backlight Type | LED |
| Brightness | 300cd/㎡ (Brightness can be adjustable in 100 levels) |
| Contrast | 500:1 |
| Backlight life | 30,000 hours |
| Viewing Angle | 70°/70°/50°/70°(L/R/U/D) |
| TFT Panel | A Class Industry Panel |
| Touch Screen | 4 Wire Resistance Touch /Capacitive Touch/ Without Touch Screen |
| Screen Mode | Digital |
| CPU | Cortex A8 |
| Refresh Rate | 1GHz |
| Max Frame rate | 60 FPS |
| Flash Memory | Standard 256MB |
| Rated Voltage | +12V DC or +5V DC |
| Temperature | Operation -30℃～ +80℃ Storage -40℃～ +85℃ |

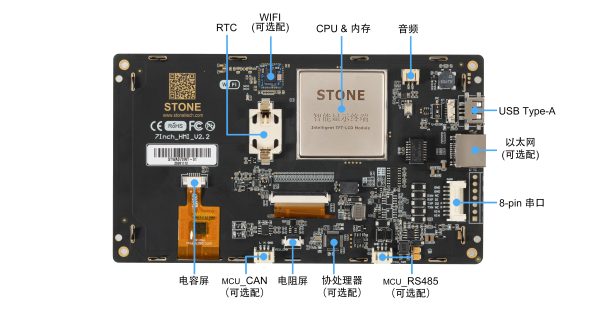

接口图
( Interface : RS232 ｜RS422｜RS485｜TTL｜CAN｜LAN｜WIFI | USB )

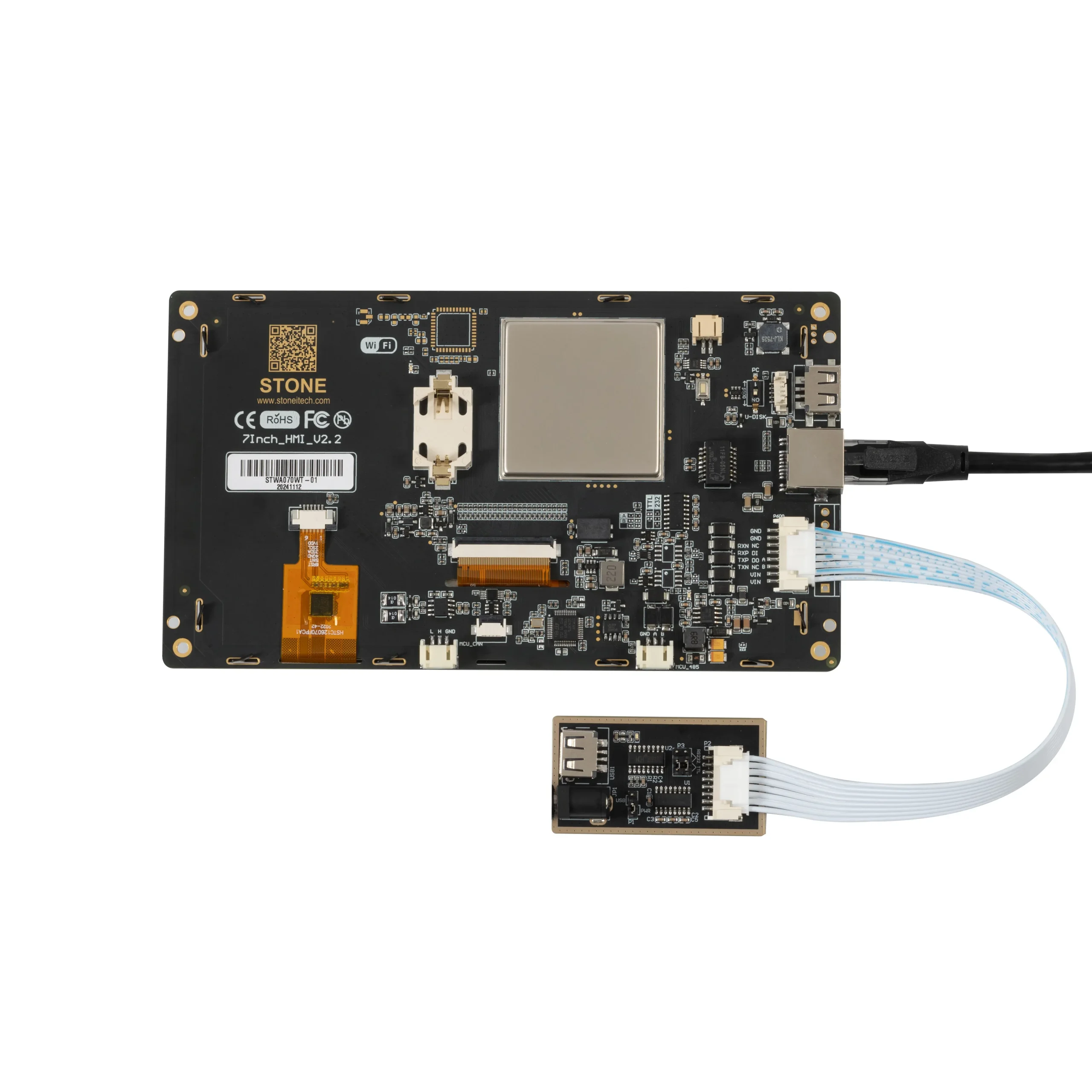

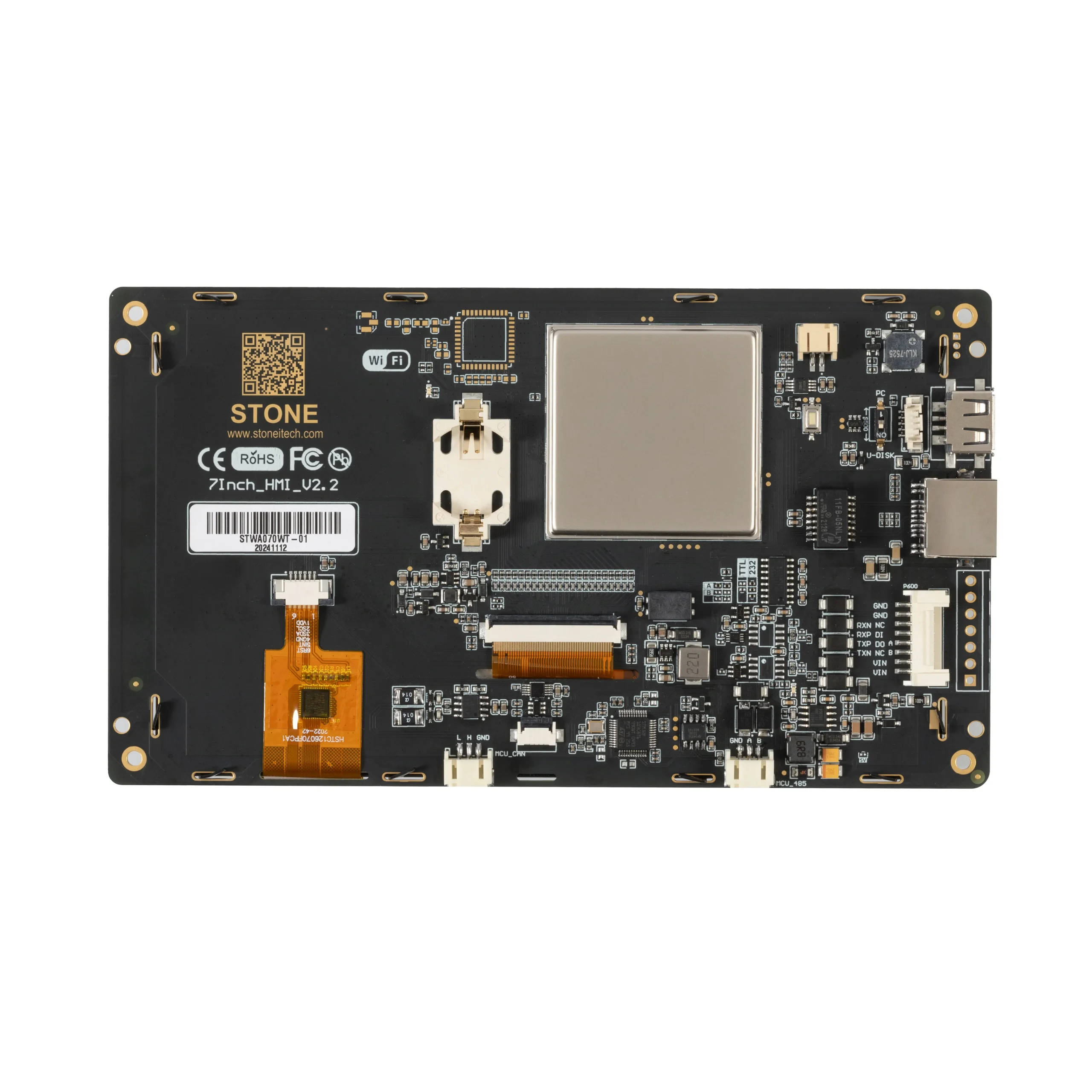

硬件细节
STONE Designer 图形化软件界面
工作原理
产品运作
工业品质
配件
国际质量认证
STONE 文档
STONE 技术支持
使用指南
Arduino Tutorials
| 项目名称 | Language | Update Date |
| C | 2025-3-17 | |
| C | 2025-3-17 | |
| C | 2025-3-17 | |
| 2025-3-30 | ||
| 2025-3-20 | ||
| 2025-3-20 |
Esp32 Tutorials
| 项目名称 | Language | Update Date |
| Micro Python | 2025-2-9 | |
| Micro Python | 2025-2-9 | |
| Micro Python | 2025-2-9 | |
| 2025-3-20 | ||
| 2025-3-20 | ||
| 2025-3-20 |
Raspberry Pi Tutorials
| 项目名称 | Language | Update Date |
| Micro Python | 2025-2-9 | |
| Micro Python | 2025-2-9 | |
| c++ | 2025-2-9 | |
| Parking Management System_1024x600 | Micro Python | 2025-2-9 |
| 2025-3-20 | ||
| Smart Refrigerator_480x800 | 2025-3-20 | |
| 2025-3-20 |
STM32 Tutorials
| 项目名称 | Language | Update Date |
| C | 2025-2-9 | |
| 2025-2-9 | ||
| 2025-2-9 | ||
| 2025-3-20 |
评价
目前还没有评价
